Trailer Mounted

Safety and technology for aerial works.



New generation of compact, road-towable Aerial Platforms

X TRAILER 12

  • Max Working height 12 m
  • Max Lateral outreach 4.5 m
  • Basket floor 10 m
  • Max. Capacity 200 Kg – 2 operators
  • Standard aluminum basket 1000x700x1100 mm
  • Stabilisation n° 4 hydraulic outriggers
  • Rotation 360°
  • 100% hydraulic controls

DESCRIPTION

  • Mounted on a trailer to be easily connected to different cars and vehicles
  • It’s the most compact unit
  • 2 models: petrol engine or electric engine
  • There is no need of any limiting device for lateral outreach
  • Double pantograph to obtain an override height of 5 m
  • Articulated telescopic boom
  • 360° turret rotation
  • Double fully hydraulic proportional controls to allow great accuracy in movements
  • Electric power tap 230 V in basket
  • Engine start & stop from the basket
  • Optional auxiliary engine to operate the platform without using truck’s engine
  • Optional of a Mover to position the platform without using a vehicle

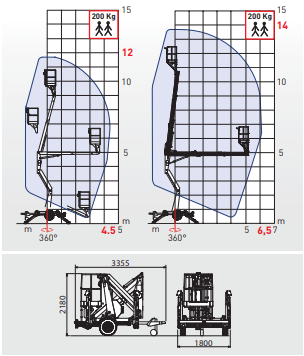

PRODUCT SHEET

click to enlarge

X TRAILER 14

  • Max Working height 14 m
  • Max Lateral outreach 6.5 m
  • Basket floor 10 m
  • Max. Capacity 200 Kg – 2 operators
  • Standard aluminum basket 1000x700x1100 mm
  • Stabilisation n° 4 hydraulic outriggers
  • Rotation 360°
  • 100% hydraulic controls

DESCRIPTION

  • Mounted on a trailer to be easily connected to different cars and vehicles
  • It’s the most compact unit
  • 2 models: petrol engine or electric engine
  • There is no need of any limiting device for lateral outreach
  • Double pantograph to obtain an override height of 5 m
  • Articulated telescopic boom
  • 360° turret rotation
  • Double fully hydraulic proportional controls to allow great accuracy in movements
  • Electric power tap 230 V in basket
  • Engine start & stop from the basket
  • Optional auxiliary engine to operate the platform without using truck’s engine
  • Optional of a Mover to position the platform without using a vehicle

PRODUCT SHEET

click to enlarge
