Articulated and Telescopic Aerial Platform
Aerial Platform range Telescopic and Articulated with double pantograph and JIb, working height from 26 mt to 33 mt, compact dimensions and possibility to reach even the most uncomfortable positions and overcome obstacles.

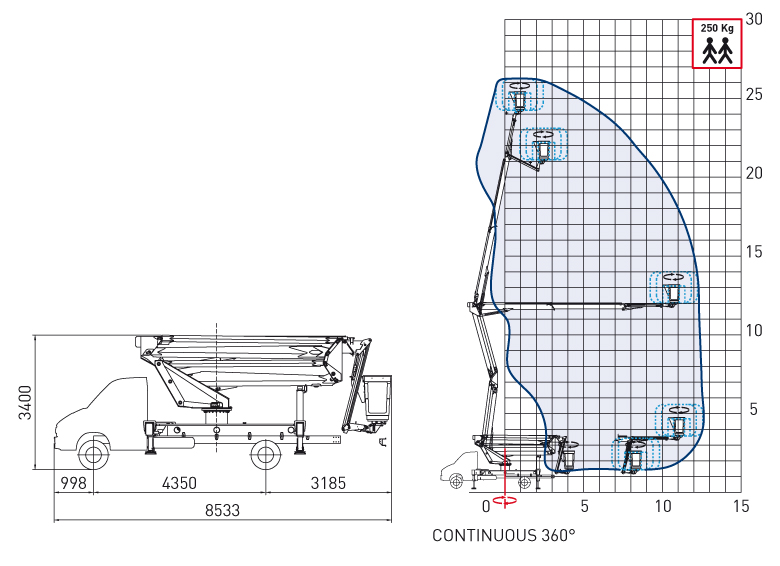

26 | 2 | 13 HQ JIB
- Max Working height 26 m
- Max Lateral outreach 13 m
- Basket floor 24 m
- Capacity 250 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers HE+HE
- Rotation: 360° continuous
- 100% hydraulic controls in low pressure
- Minimum GVW 6 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidityand maximum safety while working.
- Double pantograph to obtain an override height of 12 m
- Telescopic boom
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- 100% hydraulic controls
- Controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting system with maintenance costs reduced at minimum.
- No need of any device to limit lateral outreach (100% SAFE)
- Electric power tap 230 V in basket
- Aluminum basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines
PRODUCT SHEET
click to enlarge

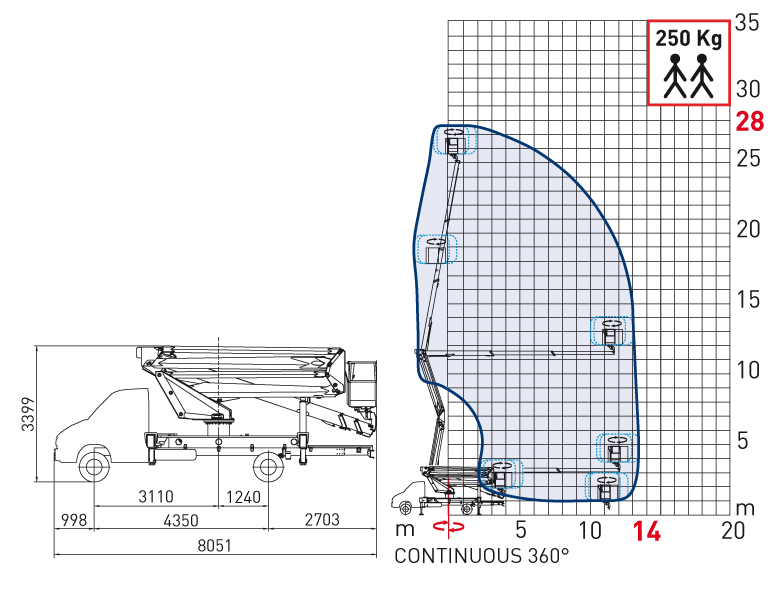

28 | 2 | 14 HQ
- Max Working height 28 m
- Max Lateral outreach 14 m
- Basket floor 26 m
- Capacity 250 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilization: n° 4 hydraulic outriggers HE+HE
- Rotation: 360° continuous
- 100% hydraulic controls in low pressure
- Minimum GVW 6 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- Double pantograph to obtain an override height of 12 m
- Telescopic boom
- 100% hydraulic controls
- Hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting system with maintenance costs reduced at minimum.
- No need of any device to limit lateral outreach (100% SAFE)
- Electric power tap 230 V in basket
- Aluminum basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines
PRODUCT SHEET
click to enlarge

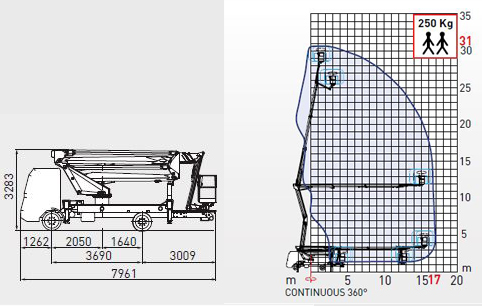

31 | 2 | 17 HQ JIB
- Max Working height 31 m
- Max Lateral outreach 17 m
- Basket floor 29 m
- Capacity 250 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilization: n° 4 hydraulic outriggers HE+HE
- Rotation: 360° continuous
- 100% hydraulic controls in low pressure
- Minimum GVW: 7.5 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- Double pantograph to obtain an override height of 12 m
- Telescopic boom
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- 100% hydraulic controls
- Controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting system with maintenance costs reduced at minimum.
- No need of any device to limit lateral outreach (100% SAFE)
- Electric power tap 230 V in basket
- Aluminum basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines
PRODUCT SHEET
click to enlarge
33 | 2 | 16 (18) HQ JIB
- Max Working height 33 m
- Max Lateral outreach 16(18) m
- Basket floor 31 m
- Capacity 250(120) Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilization: n° 4 hydraulic outriggers HE+HE
- Rotation: 360° continuous
- 100% hydraulic controls in low pressure
- Minimum GVW: 10 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- Double pantograph to obtain an override height of 12.5 m
- Telescopic boom
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- 100% hydraulic controls
- Controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting system with maintenance costs reduced at minimum.
- Electric power tap 230 V in basket
- Aluminum basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines
